VEHICLE LIFT SYSTEM -----
SKU
OTC1520

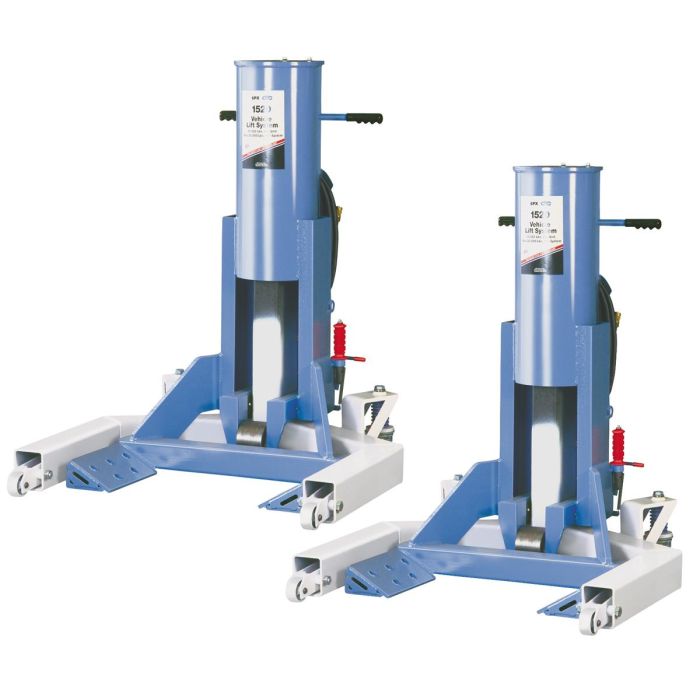

Mobile Vehicle Lift System
Features and Benefits:
- Mobile, tandem system is air-operated to handle your class 7 and 8 tractor lifting needs.
- No need to waste time re-blocking and making additional lifts for the clearance you need for under-vehicle service.
- Roll the system to the vehicle anywhere in the shop or outside on a level surface.
- Unique design provides lift from the tires, not the frame or axle members.
- Ideal for situations where limited ground clearance or a lack of clear access complicates lifting.
- Single controller operates both sides of the system for a smooth, level lift up to two full feet from the bottom of the tires to the ground.
- Units can double as support stands when retention pin is inserted.
- Covered by OTC Lifetime Marathon Warranty®.
- Specifications:
- Capacity: 10-tons (20,000 lbs.) (pair)
- Air pressure: 150 PSI
- Lifting range: 0"-24"
- Saddle width: 19-1/2" to 24-1/2" dia. rim sizes
- Height: 53-1/4"
- Width: 41-1/2"
- Length: 39-1/2"
More Information
| Brand | OTC |
|---|
